Product Overview

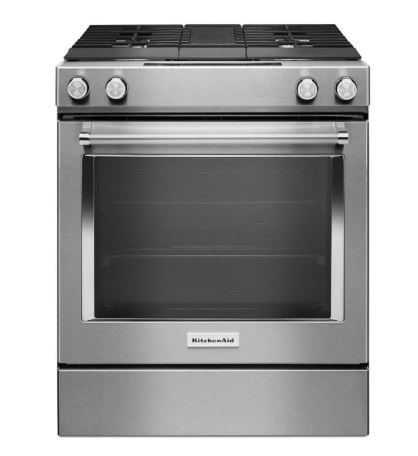

KitchenAid KSDG950ESS ADA 30" Stainless Steel Dual Fuel 4-Burner Downdraft Slide-In Range
Note: The manufacturer does not include a power cord with this item due to different outlet configurations. Check your outlet configuration to determine which cord is required then click the accessories tab to purchase the correct one for your home.
This all-in-one dual fuel range includes Downdraft, which integrates the ventilation system so a separate hood is not needed. Smoke and odors can be removed outside or filtered air can be recirculated inside. This range allows you to achieve flawless cooking results thanks to Even-Heat™ True Convection. The unique bow-tie design and convection fan ensure the entire oven is heated perfectly. It also has a Steam Rack that offers the ability to add moisture to the oven and enhances cooking results.
Features
- Downdraft
Integrates the ventilation system right into the range so that a separate hood is not needed. Smoke and odors can be removed and taken outside or air can be filtered and recirculated inside. A duct free kit can be purchased separately. - Even-Heat™ True Convection
Produces flawless results. The unique bow-tie design and convection fan ensure the inside of the entire oven is heated to, and stays at, the perfect temperature. - Steam Rack
Offers the ability to provide additional moisture to the inside of the oven, enhancing cooking results. - 6.4 cu ft capacity
This gas slide-in range provides a large cooking capacity that easily handles multiple dishes at once. - EasyConvect™ Conversion
Takes the guesswork out of convection cooking by converting conventional settings for recipes to convection settings for you. - 4 burners (5k, 9.2k, 15k and 17k)
Provides the perfect range of cooking power from 5,000 to 17,000 BTU, so you can go from a rolling boil to a delicate simmer. - Aqualift®
Cleans your oven in less than an hour without odors and at a temperature below 200°F. This innovative system combines low heat with water to release baked-on spills. - Glass Touch Controls
Offer an intuitive, easy-to-use touch screen experience. - SatinGlide® Max Racks
Move smoothly in and out, allowing effortless loading and unloading, even with large or heavy dishes. - Side Trim Accessory Kit
This optional accessory kit will cover damaged countertops and unfinished edges from an old slide- in range to make them beautiful again. Trim pieces come in black, white and stainless to seamlessly match your new range.
Specification :
General
Color : Stainless Steel
Fuel Type : Dual Fuel
Installation Type : Slide-In
Ignition Type : Electronic
Induction : No
Control Lock : No
Door Lock : Yes
Leveling Legs : Yes
Storage Drawer : No
Warming Drawer : No
Broiler Drawer : No
Baking Drawer : No
Battery Start : No
Clock : Yes
Timer : Yes
Cooktop Control Location : Front
Cooktop Control Type : Knobs
Oven Control Location : Front
Oven Control Type : Digital
ADA Compliant : Yes
Star-K Certified : No
Commercial Use : No
Sabbath Mode : No
Professional Style : No
Temperature Probe : No
Burner
Gas Type : Natural Gas
LP Convertible : Yes
Back Left Burner BTU : 5,000
Back Right Burner BTU : 9,200
Front Left Burner BTU : 17,000
Front Right Burner BTU : 15,000
Total Burner BTU : 46,200
Cooktop
Total Number of Burners / Elements : 4
Number of Burners : 4
Total Number of Cooking Zones : 4
Built-In Downdraft : Yes
Continuous Grates : Yes
Griddle : No
Grill : No
Charbroiler : No
French Top : No
Burner Grate Material : Cast Iron
Cooktop Type : Sealed
Oven
Total Oven Capacity (cu. ft.) : 6.4
Convection : Yes
Viewing Window : Yes
Double Oven : No
Number of Oven Racks : 2
Hidden Bake Element : Yes
Interior Light : Yes
Interior Lighting Type : Incandescent
Air Fry : No
Delay Start : Yes
Self Clean : Yes
Steam Cleaning : No
Steam Oven : No
Steam Assist : Yes
Cleaning Technology : Aqualift
Electrical Specifications
Voltage : 240 V
Amps : 40A
Frequency (Hz) : 60
Wi-Fi
Wi-Fi : No
Approximate Dimensions
Height (in) : 36
Width (in) : 29.88
Range Size (in) : 30
Cutout Width (in) : 30
Oven Interior Height (in) : 22.13
Oven Interior Width (in) : 24.13
Oven Interior Depth (in) : 20.75
Package Size HxWxL (in) : 43 x 31 x 31
Warranty Information
Labor Warranty : 1 Year
Parts Warranty : 1 Year
Approximate Weight
Unit Weight (lbs.) : 183
Package Weight (lbs) : 256
